Stainless Steel Welded Mesh
The stainless steel welded mesh is made from high-quality stainless steel wires. It undergoes an automated and complex welding process. The stainless steel wires are protected by positive electrode welding and chromium. At each intersection point, resistance welding connects them together. The resulting stainless steel welded mesh has strong rigidity and corrosion resistance. Even if the mesh is cut or subjected to pressure, there will be no wear marks. It is an ideal choice for industries such as industry, agriculture, construction, transportation, and mining, etc.
Stainless Steel Welded Mesh Features and Advantages
Corrosion resistance and oxidation resistance: Our factory's stainless steel has strong anti-corrosion and antioxidant properties to ensure that it is not easy to rust in various harsh environments;
Strong structure: The material strength is high, with strong tolerance, and then through precision welding technology. The solder joint is firm, to ensure that long-term use is not easy to fall off;
High temperature resistance: Stainless steel is a high-quality high temperature bearing raw material, with strong high temperature resistance, in a variety of high temperature environments will not be deformed.
Stainless Steel Welded Mesh Available Material
Stainless steel wire: 304, 304L, 316, 316L, 310, 310S, 314, 321, etc.
Low carbon steel wire mesh: C1008.
Galvanized iron wire: Hot-dip galvanized electric welding mesh has good corrosion resistance and excellent quality that ordinary wire mesh does not have.
Other wire: Such as nickel, epoxy spraying, etc.
Different metal materials can be customized according to customer needs.
Stainless Steel Welded Mesh Production Capacity
AHT/ Hebei Hatong Wire Mesh Co., Ltd. is a professional design, research and development, production, custom stainless steel welded mesh manufacturer, and our plant covers an area of 40000 square meters, with an annual output value of $21 million, with a professional R & D team, support different specifications of stainless steel welded mesh customization, has reached a strategic partnership with more than 60 countries in the world. Welcome to inquiry and request samples.

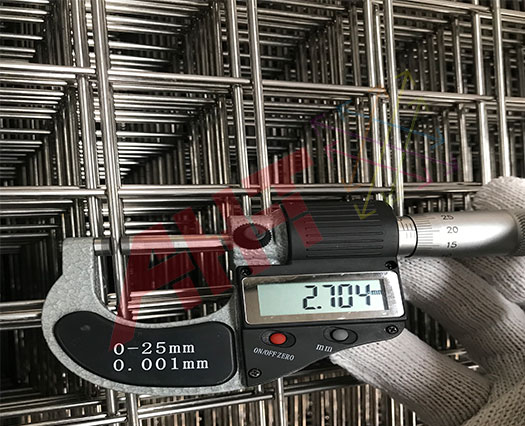

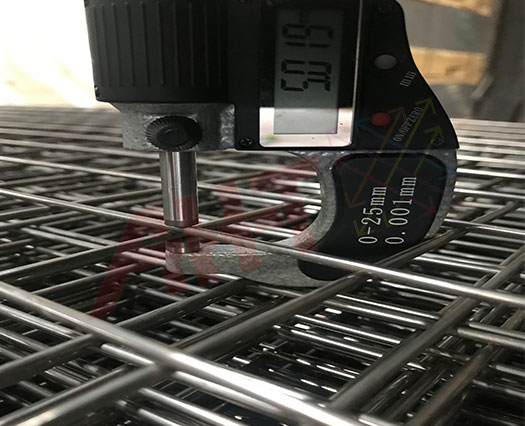

Stainless Steel Welded Mesh Quality Control
AHT/ Hebei Hatong Wire Mesh Co., Ltd. has a strict quality control system and has owned and fully implemented the following relevant certification systems:
ISO9001 Quality Management System Certification
ISO45001 Occupational Health Safety Management System Certification
ISO14001 Environmental Management System Certification
ATF16949 Automotive Industry Quality Management System Certification
Authorized Economic operator

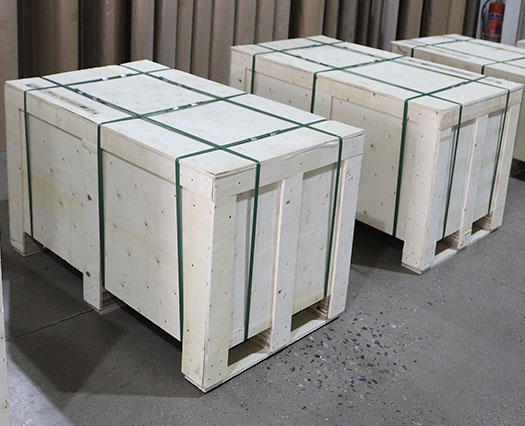

Stainless Steel Welded Mesh Packaging
Welded Wire Mesh Panel: Plastic film & Pallet

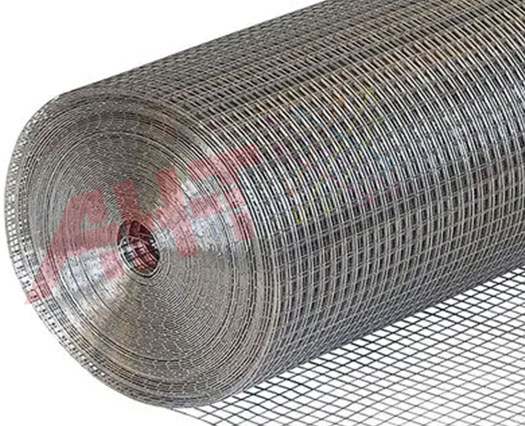

Welded Wire Mesh Coil: Plastic film & Plywood case & Pallet
Stainless Steel Welded Mesh Applications
Civil Use: As security & isolation fencing for pedestrian pavement, transport center and other public places.
Agriculture and Forestry: Fencing for goats, horse fencing and fencing for farms and livestock.

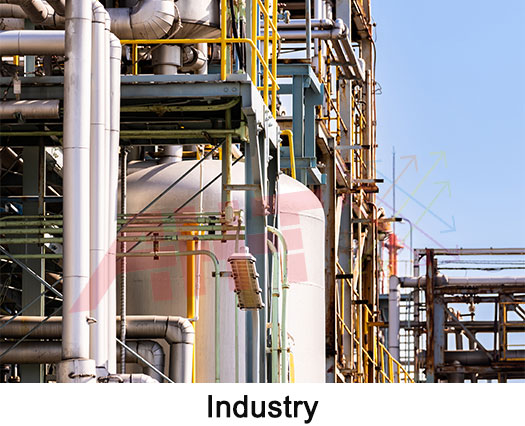

Industry & General Use: For machine protection, cage for equipment support for cable and pipe, cover for fans and ventilation devices etc.
stainless steel welded mesh Specifications
| AHT/Hatong stainless steel welded mesh of Specification | ||
Specification List of Welded Wire Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4"×1/4" | 6.4mm×6.4mm | 22,23,24 |
3/8"×3/8" | 10.6mm×10.6mm | 19,20,21,22 |
1/2"×1/2" | 12.7mm×12.7mm | 16,17,18,19,20,21,22,23 |
5/8"×5/8" | 16mm×16mm | 18,19,20,21 |
3/4"×3/4" | 19.1mm×19.1mm | 16,17,18,19,20,21 |
1"×1/2" | 25.4mm×12.7mm | 16,17,18,19,20,21 |
1-1/2"×1-1/2" | 38mm×38mm | 14,15,16,17,18,19 |
1"×2" | 25.4mm×50.8mm | 14,15,16 |
2"×2" | 50.8mm×50.8mm | 12,13,14,15,16 |
Technical Note: | ||
1.Standard roll length: 30m; width: 0.5m to 1.8m | ||
2.Special sizes available at request | ||
3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Galvanized Fencing Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
2"×3" | 50mm×75mm | 2.0mm,2.5mm,1.65mm |
3"×3" | 75mm×756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2"×4" | 50mm×100mm | 2.11mm,2.5mm |
4"×4" | 100mm×100mm | 2.0mm,2.5mm |
Technical Note: | ||
1.Standard roll length: 30m; width: 0.5m to 1.8m | ||
2.Special sizes available at request | ||
3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
PVC Coated Welded Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2"×1/2" | 12.7mm×12.7mm | 16,17,18,19,20,21 |
3/4"×3/4 | 19mm×19mm | 16,17,18,19,20,21 |
1"×i" | 25.4mm×25.4mm | 15,16,17,18,19,20 |
Technical Note: | ||
1.Standard roll length: 30m; width: 0.5m to 1.2m | ||
2.Special sizes available at request | ||
3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
