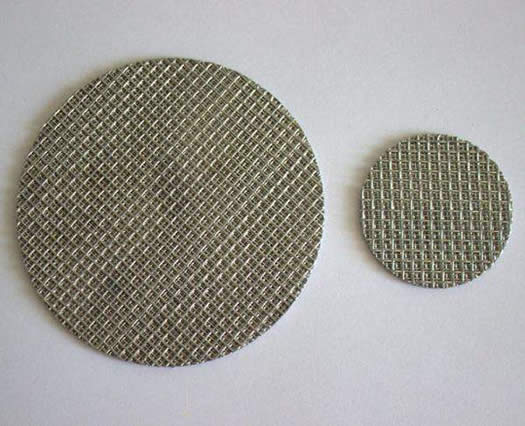

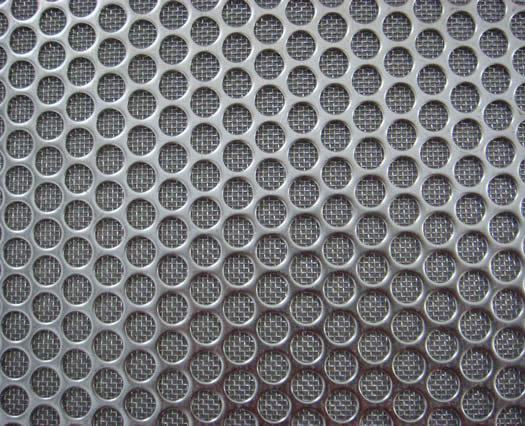

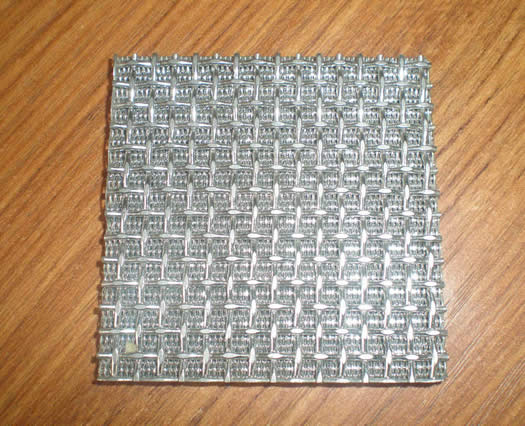

Sintered wire mesh is made form multiple layers of woven wire mesh panels using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration.

Specifications

• Material: Standard material SUS304 (AISI304), SUS316 (AISI316), SUS316L (AISI316L), Alloy Steel Hastelloy, Monel, and Inconel.
• Standard Size: 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 300 × 1500 mm.
• Fabrication: easily formed, sheared, welded and punched.

Sintered wire mesh has many advantages compare with other filter mesh, such as:

• High strength and durability with high temperature sintering.
• Anti-corrosion, and heat resistance up to 480 °C.
• Steady filter rating from the 1micron to 100 micron.
• Filter mesh not easy to deform because of two protective layers.
• Can be used for uniform filtration in high pressure or high viscosity environment.
• Ideal for cutting, bending, punching, stretching, and welding.

Sinter wire mesh filters are usually used for purification and filtration of liquid and gas, separation and recovery of solid particle, transpiration cooling under extremity high temperature, control air flow distribution, enhancement of heat and mass transfer, noise reduction, current limitation, and wildly used in aerospace, petrochemical industry, pharmaceutical industry, environmental protection industry.
