Insulation Pins

AHT Hatong Wire Mesh and Accessories is a leading manufacturer and distributor of wire mesh and steel accessories.

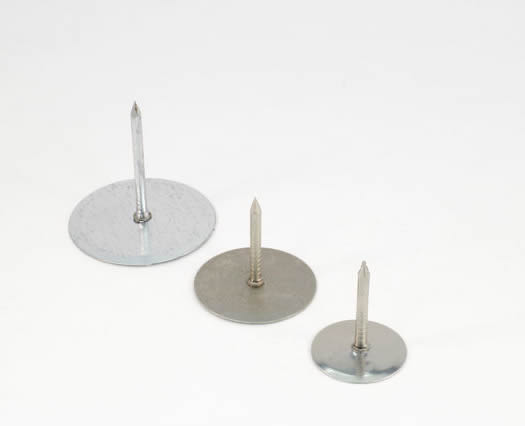

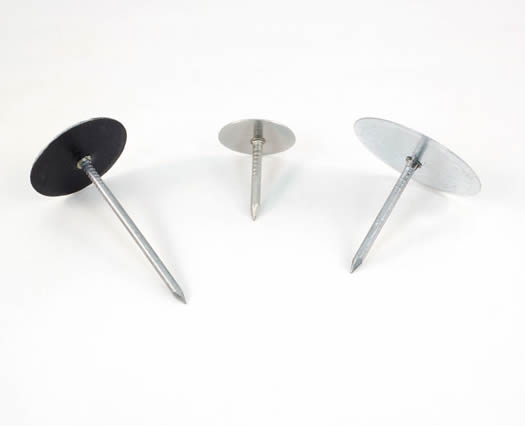

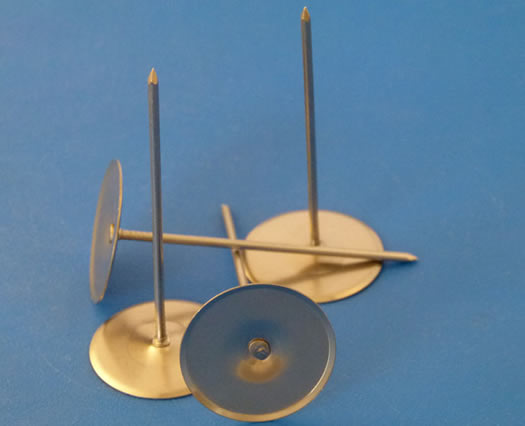

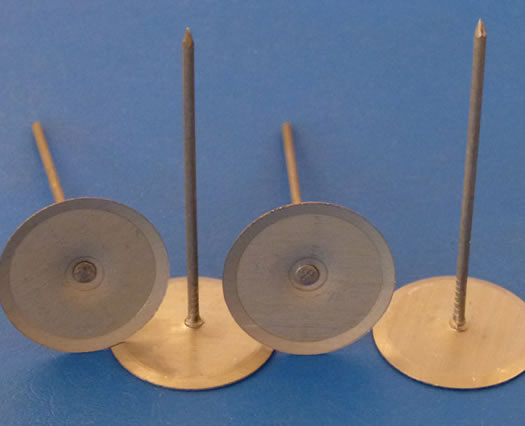

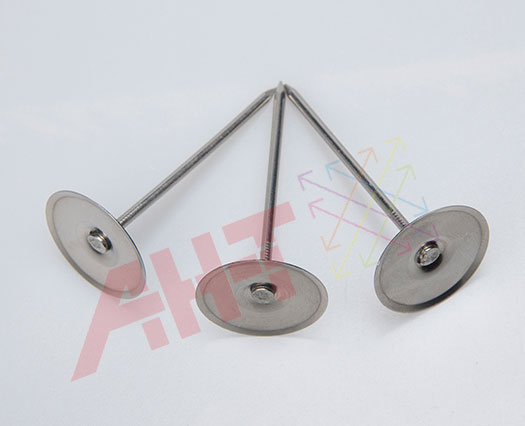

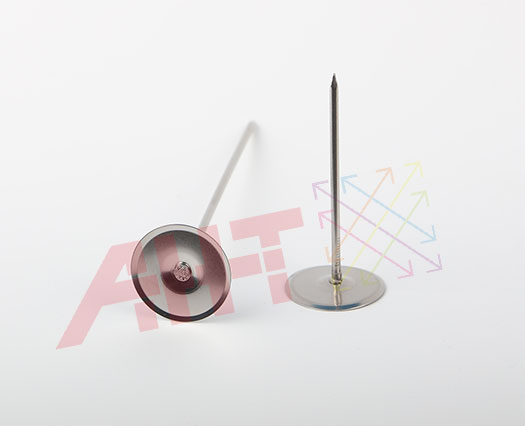

Cup Head Weld Pin

The cup head pin is an insulation fastener used to fasten insulation to the sheet metal of insulation construction and fabrication.

The cup head pin is a insulation fastener used to fasten the insulation to the sheet metal of insulation construction. through a welding process and is widely accepted as a labor-saving method during the fabrication of removable, reusable insulation blankets.

Specifications
Standard material: Low Carbon steel, Stainless steel

Plating
Pin-Galvanized plating or cooper plating
Washer- Galvanized plating.

Size
Washer: 1-3/16″ 1-1/2″
Pin diameter: 12GA(0.105”), 14GA(0.080”)

Length
3/8″ 5/8″ 7/8″ 1″ 1-1/8″ 1-3/8″ 1-5/8″ 1-7/8″ 2″ 2-1/8″ 2-3/8″ 2-7/8″ 3″ etc.

Bevel
Washer edge is beveled to prevent cutting of insulation material.
